RCN EXPansion EXP 54 system for environments that experience extremes in temperature range

RCN EXPansion | EXP 54 system

A premium triple glazed sliding system

The triple glazed EXPansion EXP 54 sliding system is ideal for use in environments that experience extremes in temperature range. The highly insulated system, that can be motorised, is tailored to your project’s specific design requirements.

The recessed threshold of the EXP 54 HR variant allows glazed openings with a flat floor for a completely seamless transition from inside to outside.

Contact Euro Facade Solutions to see how the RCN EXPansion EXP 54 range can enhance your next project.

GALLERY

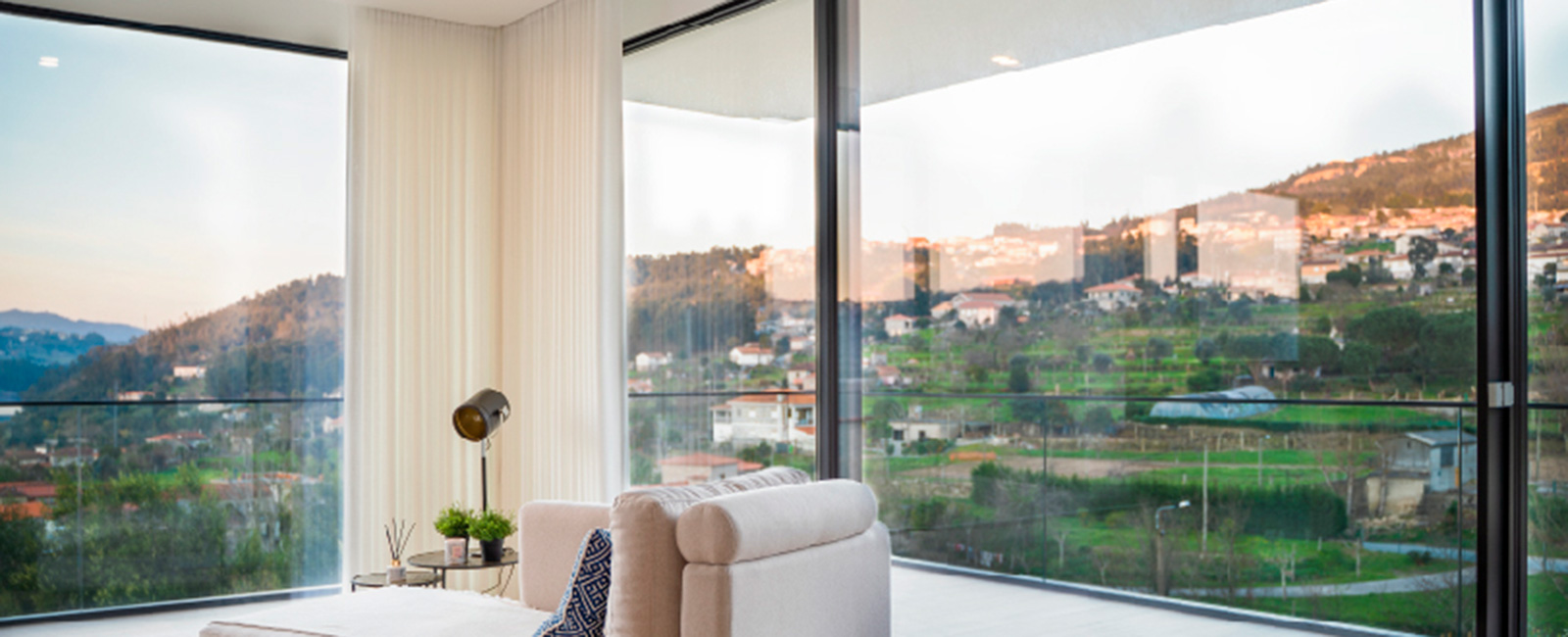

RCN Aluminium EXP 54 Sliding System

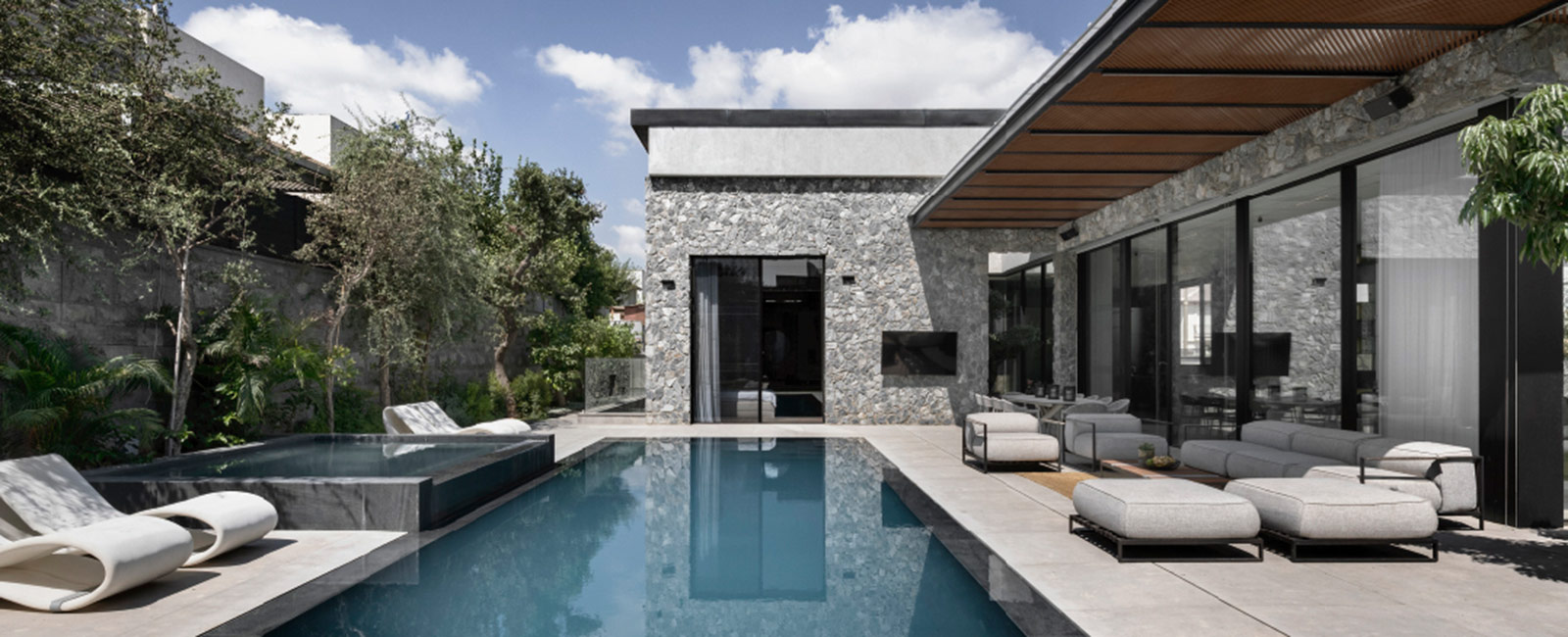

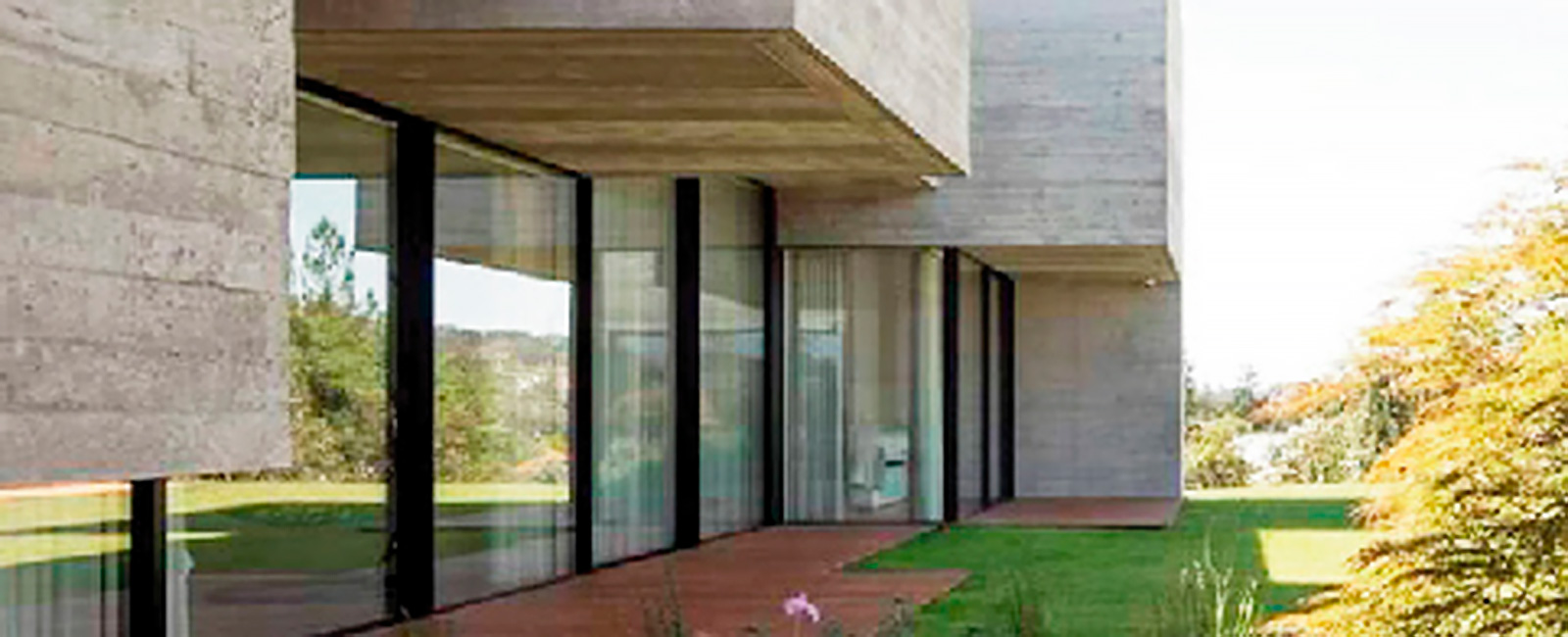

RCN Aluminium EXP 54 HR Sliding System
RCN Aluminium EXP 54 Sliding System

OPTIONS

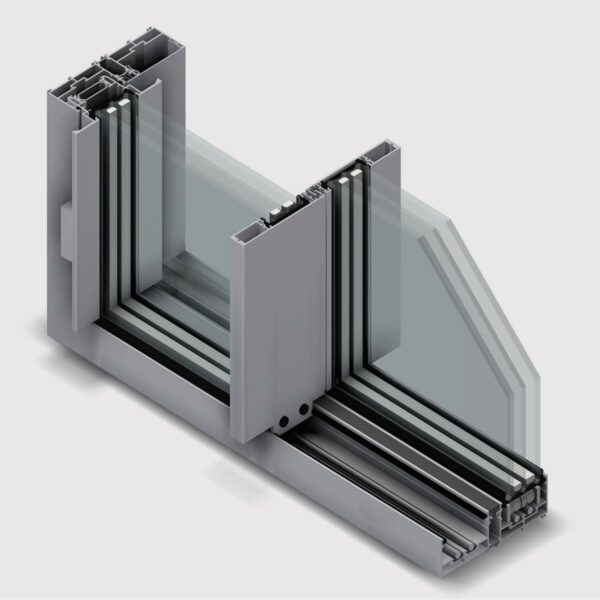

RCN EXP 54 C

A triple glass sliding system designed for large glazed areas

  • AS 2047 tested & compliant
  • Maximum weight (leaf): 1000kg
  • Maximum height (leaf): 6000mm
  • Maximum area (leaf): 18m2
  • Glass thickness: 50mm, 54mm
  • Thermal insulation: 0.8-1.2 W/m2 K
  • Acoustic isolation: up to 41 dB
RCN Aluminium EXP 54 Sliding System

RCN EXP 54 HR

A triple glass sliding system with a recessed threshold

  • AS 2047 tested & compliant
  • Maximum weight (leaf): 1000kg
  • Maximum height (leaf): 6000mm
  • Maximum area (leaf): 18m2
  • Glass thickness: 50mm, 54mm
  • Thermal insulation: 0.8-1.2 W/m2 K
  • Acoustic isolation: up to 41 dB
RCN Aluminium EXP 54 Sliding System

DOWNLOADS

Brochures

RCN Aluminium Product Brochure

Specifications

RCN EXP 54 C Specifications

RCN EXP 54 HR Specifications
