RCN EXPansion EXP 36 system next generation minimalist sliding systems, windows and doors

RCN EXPansion | EXP 36 System

Next generation minimalist sliding systems, windows and doors

The minimalist design of the EXPansion EXP 36 sliding system combines large glass panels with slim profiles to the maximise the amount of natural light that floods in to your space. The high thermal performance double glass system ensures user comfort. Features of the flexible system include free corners, automation and recessed openings in a wall cavity.

The EXP 36 C sliding system offers a versatile range of one to four rails or multi-rails by combining different profiles.

The recessed threshold of the EXP 36 HR variant allows glazed openings with a flat floor for a completely seamless transition from inside to outside.

Contact Euro Facade Solutions to see how the RCN EXPansion EXP 36 range can enhance your next project.

OPTIONS

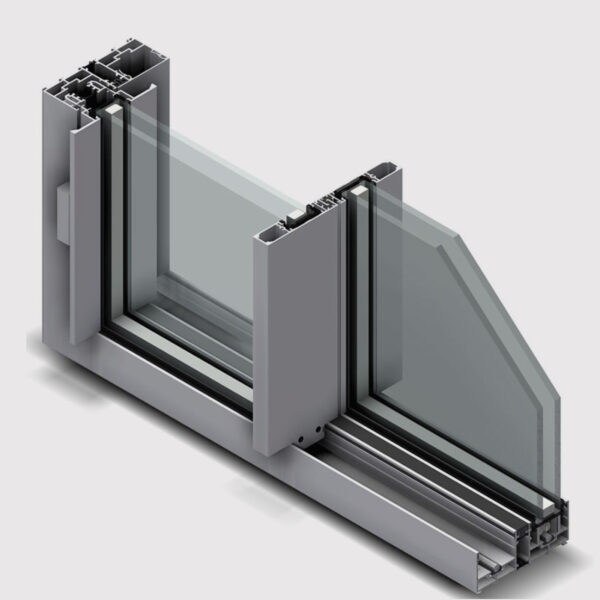

RCN EXP 36 C

Offers one to four rails or multi-rails

  • AS 2047 tested & compliant
  • Maximum weight (leaf): 600kg
  • Maximum height (leaf): 5000mm
  • Maximum area (leaf): 12m2
  • Glass thickness: 32mm, 36mm
  • Thermal insulation: 1.0-1.7 W/mK
  • Acoustic isolation: up to 41 dB

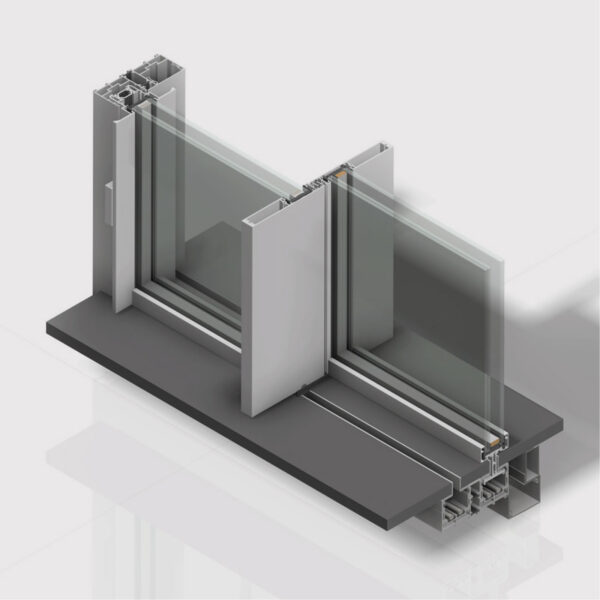

RCN EXP 36 HR

Offers a recessed threshold

  • AS 2047 tested & compliant
  • Maximum weight (leaf): 600kg
  • Maximum height (leaf): 5000mm
  • Maximum area (leaf): 12m2
  • Glass thickness: 32mm, 36mm
  • Thermal insulation: 1.0-1.7 W/mK
  • Acoustic isolation: up to 41 dB
